    高仿Windows Phone QQ登录界面实例代码

    给 TextBox文本框前添加图片

    扩展PhoneTextBox:添加一个类“ExtentPhoneTextBox”继承 PhoneTextBox ,在“ExtentPhoneTextBox”类中添加属性项:

    复制代码 代码如下:

    public class ExtentPhoneTextBox : PhoneTextBox
        {
            /// summary>
            /// 文本框图片属性
            /// /summary>
            public static readonly DependencyProperty TextHeadImageProperty =
                DependencyProperty.Register("TextHeadImage", typeof(ImageSource), typeof(ExtentPhoneTextBox), new PropertyMetadata(null)
                );

            /// summary>
            /// 文本框头图片
            /// /summary>
            public ImageSource TextHeadImage
            {
                get { return base.GetValue(TextHeadImageProperty) as ImageSource; }
                set { base.SetValue(TextHeadImageProperty, value); }
            }

            /// summary>
            /// 文本图片宽度
            /// /summary>
            public double TextHeadImageWidth
            {
                get { return (double)GetValue(TextHeadImageWidthProperty); }
                set { SetValue(TextHeadImageWidthProperty, value); }
            }

            // Using a DependencyProperty as the backing store for TextHeadImageWidth.  This enables animation, styling, binding, etc...
            public static readonly DependencyProperty TextHeadImageWidthProperty =
                DependencyProperty.Register("TextHeadImageWidth", typeof(double), typeof(ExtentPhoneTextBox), new PropertyMetadata(null));

            /// summary>
            /// 文本图片高度
            /// /summary>
            public double TextHeadImageHeight
            {
                get { return (double)GetValue(TextHeadImageHeightProperty); }
                set { SetValue(TextHeadImageHeightProperty, value); }
            }

            // Using a DependencyProperty as the backing store for TextHeadImageHeight.  This enables animation, styling, binding, etc...
            public static readonly DependencyProperty TextHeadImageHeightProperty =
                DependencyProperty.Register("TextHeadImageHeight", typeof(double), typeof(ExtentPhoneTextBox), new PropertyMetadata(null));
        }
    }

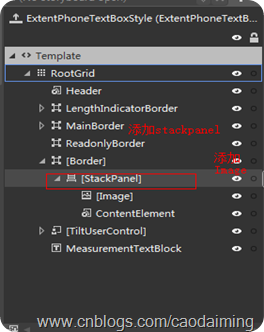

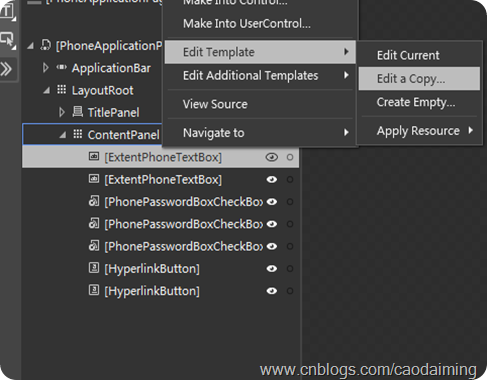

    ExtentPhoneText 样式编辑:

    全部样式如下:

    复制代码 代码如下:

    DataTemplate x:Key="ControlHeaderTemplate">
                TextBlock FontSize="{StaticResource PhoneFontSizeNormal}" FontFamily="{StaticResource PhoneFontFamilyNormal}" LineStackingStrategy="BlockLineHeight" LineHeight="23.333" Margin="0,-9,0,0" TextWrapping="Wrap" Text="{Binding}">
                    TextBlock.RenderTransform>
                        TranslateTransform X="-1" Y="4"/>
                    /TextBlock.RenderTransform>
                /TextBlock>
            /DataTemplate>
            toolkit:SingleDataTemplateSelector x:Key="ControlHeaderTemplateSelector" Template="{StaticResource ControlHeaderTemplate}"/>
            Style x:Key="ExtentPhoneTextBoxStyle" TargetType="ExtentCtrs:ExtentPhoneTextBox">
                Setter Property="FontFamily" Value="{StaticResource PhoneFontFamilyNormal}"/>
                Setter Property="FontSize" Value="{StaticResource PhoneFontSizeMediumLarge}"/>
                Setter Property="Background" Value="{StaticResource PhoneTextBoxBrush}"/>
                Setter Property="Foreground" Value="{StaticResource PhoneTextBoxForegroundBrush}"/>
                Setter Property="BorderBrush" Value="{StaticResource PhoneTextBoxBrush}"/>
                Setter Property="SelectionBackground" Value="{StaticResource PhoneAccentBrush}"/>
                Setter Property="SelectionForeground" Value="{StaticResource PhoneTextBoxSelectionForegroundBrush}"/>
                Setter Property="BorderThickness" Value="{StaticResource PhoneBorderThickness}"/>
                Setter Property="Padding" Value="6,0,6,4"/>
                Setter Property="HorizontalContentAlignment" Value="Left"/>
                Setter Property="Template">
                    Setter.Value>
                        ControlTemplate TargetType="ExtentCtrs:ExtentPhoneTextBox">
                            Grid x:Name="RootGrid" Background="Transparent">
                                Grid.RowDefinitions>
                                    RowDefinition Height="Auto"/>
                                    RowDefinition/>
                                /Grid.RowDefinitions>
                                VisualStateManager.VisualStateGroups>
                                    VisualStateGroup x:Name="CommonStates">
                                        VisualState x:Name="Normal"/>
                                        VisualState x:Name="Disabled">
                                            Storyboard>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="Header">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextLowContrastBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="MainBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="MainBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneDisabledBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentElement">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneDisabledBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                            /Storyboard>
                                        /VisualState>
                                        VisualState x:Name="ReadOnly">
                                            Storyboard>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="MainBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0">
                                                        DiscreteObjectKeyFrame.Value>
                                                            Visibility>Collapsed/Visibility>
                                                        /DiscreteObjectKeyFrame.Value>
                                                    /DiscreteObjectKeyFrame>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="ReadonlyBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0">
                                                        DiscreteObjectKeyFrame.Value>
                                                            Visibility>Visible/Visibility>
                                                        /DiscreteObjectKeyFrame.Value>
                                                    /DiscreteObjectKeyFrame>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ReadonlyBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ReadonlyBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentElement">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxReadOnlyBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                            /Storyboard>
                                        /VisualState>
                                    /VisualStateGroup>
                                    VisualStateGroup x:Name="FocusStates">
                                        VisualState x:Name="Focused">
                                            Storyboard>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="MainBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxEditBackgroundBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="MainBorder">
                                                    DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxEditBorderBrush}"/>
                                                /ObjectAnimationUsingKeyFrames>
                                            /Storyboard>
                                        /VisualState>
                                        VisualState x:Name="Unfocused"/>
                                    /VisualStateGroup>
                                    VisualStateGroup x:Name="LengthIndicatorStates">
                                        VisualStateGroup.Transitions>
                                            VisualTransition From="LengthIndicatorHidden" To="LengthIndicatorVisible">
                                                Storyboard>
                                                    ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="LengthIndicator">
                                                        DiscreteObjectKeyFrame KeyTime="0:0:0">
                                                            DiscreteObjectKeyFrame.Value>
                                                                Visibility>Visible/Visibility>
                                                            /DiscreteObjectKeyFrame.Value>
                                                        /DiscreteObjectKeyFrame>
                                                    /ObjectAnimationUsingKeyFrames>
                                                    ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Margin" Storyboard.TargetName="RootGrid">
                                                        DiscreteObjectKeyFrame KeyTime="0:0:0" Value="0, 0, 0, 25"/>
                                                    /ObjectAnimationUsingKeyFrames>
                                                    ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="LengthIndicator">
                                                        DiscreteObjectKeyFrame KeyTime="0:0:0" Value="1"/>
                                                    /ObjectAnimationUsingKeyFrames>
                                                    DoubleAnimation Duration="0:0:0.350" To="27" Storyboard.TargetProperty="(UIElement.RenderTransform).(TranslateTransform.Y)" Storyboard.TargetName="LengthIndicator">
                                                        DoubleAnimation.EasingFunction>
                                                            ExponentialEase Exponent="6"/>
                                                        /DoubleAnimation.EasingFunction>
                                                    /DoubleAnimation>
                                                /Storyboard>
                                            /VisualTransition>
                                            VisualTransition From="LengthIndicatorVisible" To="LengthIndicatorHidden">
                                                Storyboard>
                                                    DoubleAnimation Duration="0:0:0.350" To="0" Storyboard.TargetProperty="(UIElement.RenderTransform).(TranslateTransform.Y)" Storyboard.TargetName="LengthIndicator">
                                                        DoubleAnimation.EasingFunction>
                                                            ExponentialEase Exponent="6"/>
                                                        /DoubleAnimation.EasingFunction>
                                                    /DoubleAnimation>
                                                    ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Margin" Storyboard.TargetName="RootGrid">
                                                        DiscreteObjectKeyFrame KeyTime="0:0:0" Value="0, 0, 0, 0"/>
                                                    /ObjectAnimationUsingKeyFrames>
                                                    ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="LengthIndicator">
                                                        DiscreteObjectKeyFrame KeyTime="0:0:0.350" Value="0"/>
                                                    /ObjectAnimationUsingKeyFrames>
                                                    ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="LengthIndicator">
                                                        DiscreteObjectKeyFrame KeyTime="0:0:0.350">
                                                            DiscreteObjectKeyFrame.Value>
                                                                Visibility>Collapsed/Visibility>
                                                            /DiscreteObjectKeyFrame.Value>
                                                        /DiscreteObjectKeyFrame>
                                                    /ObjectAnimationUsingKeyFrames>
                                                /Storyboard>
                                            /VisualTransition>
                                        /VisualStateGroup.Transitions>
                                        VisualState x:Name="LengthIndicatorVisible">
                                            Storyboard>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="LengthIndicator">
                                                    DiscreteObjectKeyFrame KeyTime="0:0:0">
                                                        DiscreteObjectKeyFrame.Value>
                                                            Visibility>Visible/Visibility>
                                                        /DiscreteObjectKeyFrame.Value>
                                                    /DiscreteObjectKeyFrame>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Margin" Storyboard.TargetName="RootGrid">
                                                    DiscreteObjectKeyFrame KeyTime="0:0:0" Value="0, 0, 0, 25"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity" Storyboard.TargetName="LengthIndicator">
                                                    DiscreteObjectKeyFrame KeyTime="0:0:0" Value="1"/>
                                                /ObjectAnimationUsingKeyFrames>
                                                DoubleAnimation Duration="0" To="27" Storyboard.TargetProperty="(UIElement.RenderTransform).(TranslateTransform.Y)" Storyboard.TargetName="LengthIndicator"/>
                                            /Storyboard>
                                        /VisualState>
                                        VisualState x:Name="LengthIndicatorHidden"/>
                                    /VisualStateGroup>
                                /VisualStateManager.VisualStateGroups>
                                toolkit:PhoneContentControl x:Name="Header" ContentTemplate="{TemplateBinding HeaderTemplate}" ContentTemplateSelector="{StaticResource ControlHeaderTemplateSelector}" Content="{TemplateBinding Header}" Foreground="{StaticResource PhoneTextMidContrastBrush}" FontSize="{StaticResource PhoneFontSizeNormal}" FontFamily="{StaticResource PhoneFontFamilyNormal}" HorizontalContentAlignment="{TemplateBinding HorizontalContentAlignment}" Margin="{StaticResource PhoneHorizontalMargin}"/>
                                Border x:Name="LengthIndicatorBorder" Grid.Row="1">
                                    TextBlock x:Name="LengthIndicator" CacheMode="BitmapCache" Foreground="{StaticResource PhoneTextMidContrastBrush}" FontSize="{StaticResource PhoneFontSizeNormal}" FontFamily="{StaticResource PhoneFontFamilyNormal}" HorizontalAlignment="Right" Margin="{StaticResource PhoneMargin}" Opacity="0" TextAlignment="Right" Visibility="Collapsed" VerticalAlignment="Bottom">
                                        TextBlock.RenderTransform>
                                            TranslateTransform/>
                                        /TextBlock.RenderTransform>
                                    /TextBlock>
                                /Border>
                                Border x:Name="MainBorder" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" Margin="{StaticResource PhoneTouchTargetOverhang}" Grid.Row="1">
                                    TextBlock x:Name="PlaceholderTextElement" Foreground="{StaticResource PhoneTextBoxReadOnlyBrush}" HorizontalAlignment="Left" Padding="{TemplateBinding Padding}" Text="{TemplateBinding PlaceholderText}" VerticalAlignment="Center" Margin="40,2,0,2"/>
                                /Border>
                                Border x:Name="ReadonlyBorder" BorderBrush="{StaticResource PhoneDisabledBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="Transparent" Margin="{StaticResource PhoneTouchTargetOverhang}" Grid.Row="1" Visibility="Collapsed"/>
                                Border BorderBrush="Transparent" BorderThickness="{TemplateBinding BorderThickness}" Background="Transparent" Margin="{StaticResource PhoneTouchTargetOverhang}" Grid.Row="1">
                                    StackPanel Orientation="Horizontal">
                                        Image Source="{TemplateBinding TextHeadImage}" Width="{TemplateBinding TextHeadImageWidth}" Height="{TemplateBinding TextHeadImageWidth}" HorizontalAlignment="Left" Margin="12,2,1,2"/>
                                        ContentControl x:Name="ContentElement" BorderThickness="0" CacheMode="BitmapCache" HorizontalContentAlignment="Stretch" Padding="{TemplateBinding Padding}" VerticalContentAlignment="Stretch" VerticalAlignment="Center"/>
                                    /StackPanel>
                                /Border>
                                toolkitPrimitives:TiltUserControl HorizontalAlignment="Right" Margin="0,0,-12,0" Grid.Row="1" VerticalAlignment="Bottom">
                                    Border x:Name="ActionIconBorder" Background="Transparent" Height="72" Width="96">
                                        Image x:Name="ActionIcon" HorizontalAlignment="Right" Height="26" Margin="0,0,36,0" Source="{TemplateBinding ActionIcon}"/>
                                    /Border>
                                /toolkitPrimitives:TiltUserControl>
                                TextBlock x:Name="MeasurementTextBlock" FontWeight="{TemplateBinding FontWeight}" FontStyle="{TemplateBinding FontStyle}" FontStretch="{TemplateBinding FontStretch}" FontSize="{TemplateBinding FontSize}" FontFamily="{TemplateBinding FontFamily}" IsHitTestVisible="False" Margin="8" Opacity="0" Grid.Row="1" TextAlignment="{TemplateBinding TextAlignment}" TextWrapping="{TemplateBinding TextWrapping}" Text="{TemplateBinding Text}"/>
                            /Grid>
                        /ControlTemplate>
                    /Setter.Value>
                /Setter>
            /Style>

    UI部局xaml代码如下:

    Grid x:Name="ContentPanel"
                Margin="0,162,24,19"
                Grid.RowSpan="2">

                ExtentCtrs:ExtentPhoneTextBox  Margin="12,10,12,0"
                    TextWrapping="Wrap"
                    VerticalAlignment="Top"
                    PlaceholderText="QQ号码/手机/邮箱"
                    Height="80"
                    Background="White" TextHeadImage="/Assets/QqAccount.WVGA.png" Style="{StaticResource ExtentPhoneTextBoxStyle}" TextHeadImageHeight="22" TextHeadImageWidth="24" />
                ExtentCtrs:ExtentPhoneTextBox  Margin="12,107,12,0"
                    TextWrapping="Wrap"
                    VerticalAlignment="Top"
                    PlaceholderText="点击输入QQ密码"
                    Height="80"
                    Background="White" Style="{StaticResource ExtentPhoneTextBoxStyle}" TextHeadImage="/Assets/Password.WVGA.png" TextHeadImageHeight="22" TextHeadImageWidth="24" />

                toolkitPrimitives:PhonePasswordBoxCheckBox Content="记住密码"
                    HorizontalAlignment="Left"
                    Margin="12,195,0,0"
                    VerticalAlignment="Top"
                    HorizontalContentAlignment="Left" />
                toolkitPrimitives:PhonePasswordBoxCheckBox Content="隐身登录"
                    HorizontalAlignment="Left"
                    Margin="224,195,0,0"
                    VerticalAlignment="Top" />
                toolkitPrimitives:PhonePasswordBoxCheckBox Content="静音登录"
                    HorizontalAlignment="Left"
                    Margin="12,272,0,0"
                    VerticalAlignment="Top" />
                HyperlinkButton Content="注册帐号"
                    HorizontalAlignment="Left"
                    Margin="12,349,0,0"
                    VerticalAlignment="Top"
                    HorizontalContentAlignment="Left" />
                HyperlinkButton Content="找回密码"
                    HorizontalAlignment="Left"
                    Margin="12,385,0,0"
                    VerticalAlignment="Top"
                    HorizontalContentAlignment="Left" />

            /Grid>

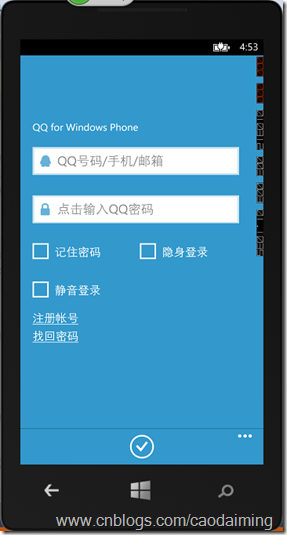

    运行效果如下:
